1S1888, 1S1885 - PLASTIC SILICON RECTIFIER

1S1888 Description

BL GALAXY ELECTRICAL PLASTIC SILICON RECTIFIER 1S1885(Z) - - -1S1888(Z) VOLTAGE RANGE: 100 *- 600 V CURRENT: 1.0 A .

1S1888 Features

* Low cost Diffused juncton Low leakage Low forward voltage drop High current capability Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 MECHANICAL DATA Case:JEDEC DO
* 15,molded plastic Terminals: Axial lead ,solderable per M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1S1888, 1S1885. Please refer to the document for exact specifications by model.

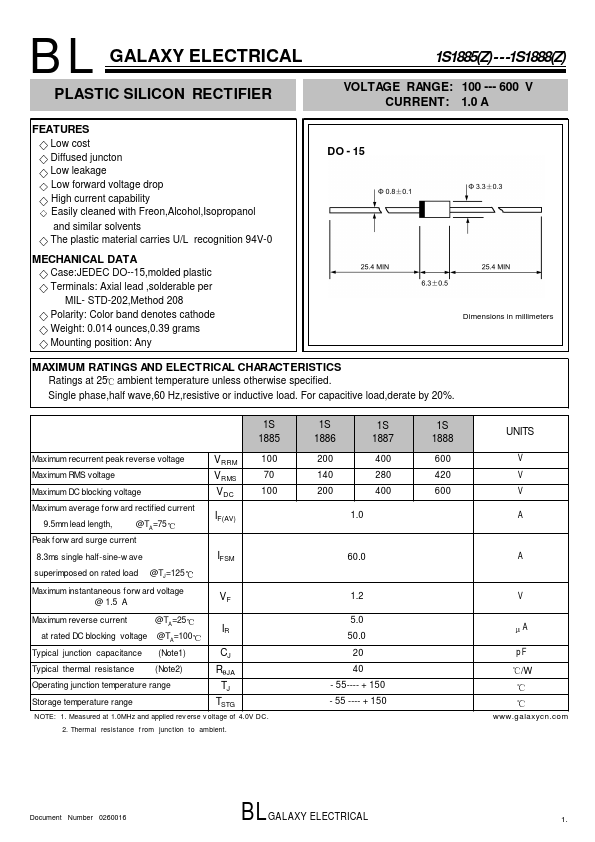

datasheet Preview Page 2

Datasheet Details

Part number
1S1888, 1S1885
Manufacturer
GALAXY ELECTRICAL
File Size
233.98 KB
Datasheet
1S1885-GALAXYELECTRICAL.pdf
Description
PLASTIC SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1S1888, 1S1885.
Please refer to the document for exact specifications by model.
