SL490B Datasheet - GEC PLESSEY

SL490B REMOTE CONTROL TRANSMITTER

           APRIL 1995 SL490B 3056-1.3 REMOTE CONTROL TRANSMITTER (Supersedes version in April 1994 Consumer IC Handbook, HB3120 - 2.0) GPS has developed and produced a range of monolithic integrated circuits which give a wide variety of remote control facilities. As well as ultrasonic or infra-red transmission, cable, radio or telephone links may also be used. Pulse Position Modulation (PPM) is used with or without carrier and automatic error detection is incorporated. Initially.

SL490B Features

* s Ultrasonic or Infra-Red Transmission s Direct Drive or Ultrasonic Transducer s Direct Drive of Visible LED when using Infra-Red s Very Low Power Requirements s Pulse Position Modulation gives Excellent Immunity from Noise and Multipath Reflections s Single Pole Key Matrix s Switch Resistance up to

SL490B Datasheet (107.76 KB)

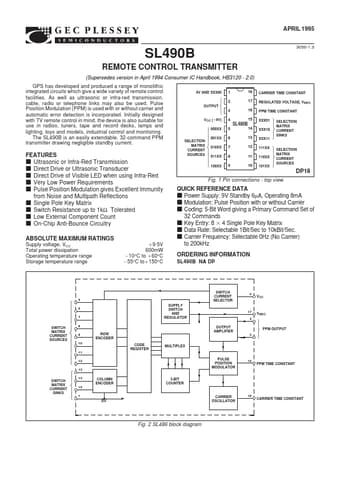

Preview of SL490B PDF

Datasheet Details

Part number:

SL490B

Manufacturer:

GEC PLESSEY

File Size:

107.76 KB

Description:

Remote control transmitter.
