SL400H65TL Datasheet, Module, Slkor

SL400H65TL Features

  • Module z Short Circuit Rated 10μs z Low Saturation Voltage: VCE (sat) = 1.50V @ IC = 400A , TC=25℃ z Low Switching Loss z 100% RBSOA Tested(2×Ic) z Low Stray Inductance z Lead Free, Compliant

PDF File Details

Part number:

SL400H65TL

Manufacturer:

Slkor

File Size:

630.64kb

Download:

📄 Datasheet

Description:

Igbt module. Conditions Min Typ VGE(th) Gate-Emitter Threshold Voltage IC = 1 mA, VCE = VGE 5.0 5.

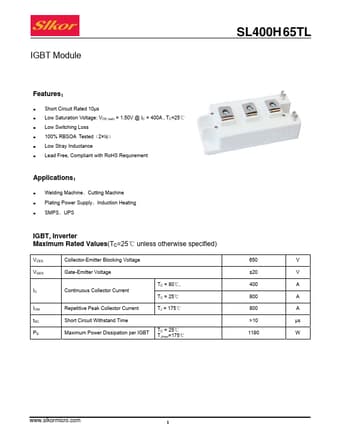

Datasheet Preview: SL400H65TL 📥 Download PDF (630.64kb)
Page 2 of SL400H65TL Page 3 of SL400H65TL

SL400H65TL Application

  • Applications z Welding Machine、Cutting Machine z Plating Power Supply、Induction Heating z SMPS、UPS IGBT, Inverter Maximum Rated Values(TC=25℃ unle
