SL4015B Datasheet - System Logic Semiconductor

SL4015B Dual 4-Stage Static Shift Register

SL4015B Dual 4-Stage Static Shift Register High-Voltage Silicon-Gate CMOS The SL4015B consists of two identical, independent, 4-stage serialinput/parallel-output registers. Each register has independent CLOCK and RESET inputs as well as a single serial DATA input. “Q” outputs are available from each of the four stages on both registers. All register stages are D-type, master-slave flip-flops. The logic level present at the DATA input is transferred into the first register stage and shifted over.

SL4015B Datasheet (39.45 KB)

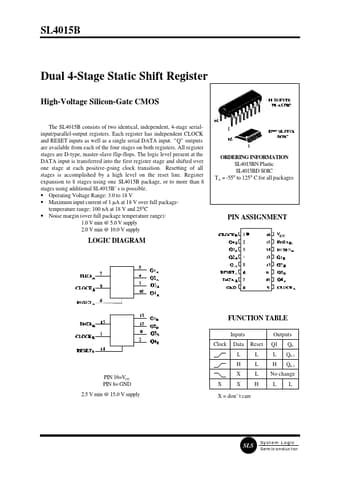

Preview of SL4015B PDF

Datasheet Details

Part number:

SL4015B

Manufacturer:

System Logic Semiconductor

File Size:

39.45 KB

Description:

Dual 4-stage static shift register.
