SL4012B Dual 4-Input NAND Gate

SL4012B Dual 4-Input NAND Gate High-Voltage Silicon-Gate CMOS The SL4012B NAND gates provide the system designer with direct emplementation of the NAND function. Operating Voltage Range: 3.0 to 18 V Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply ORDERING INFORMATION SL4012BN Plastic SL40.

SL4012B Datasheet (30.83 KB)

Preview of SL4012B PDF

Datasheet Details

Part number:

SL4012B

Manufacturer:

System Logic Semiconductor

File Size:

30.83 KB

Description:

Dual 4-input nand gate.

📁 Related Datasheet

SL4011B Quad 2-Input NAND Gate (System Logic Semiconductor)

SL4013B Dual D Flip-Flop (System Logic Semiconductor)

SL4015B Dual 4-Stage Static Shift Register (System Logic Semiconductor)

SL4017B Counter/Divider (System Logic Semiconductor)

SL4019B Quad AND/OR Select Gate (System Logic Semiconductor)

SL4001B Quad 2-Input NOR Gate (System Logic Semiconductor)

SL4002B Dual 4-Input NOR Gate (System Logic Semiconductor)

SL400H65TL IGBT Module (Slkor)

SL4020B 14 Stage Ripple-Carry Binary Counter/Divider (System Logic Semiconductor)

SL4023B Triple 3-Input NAND Gate (System Logic Semiconductor)

TAGS

SL4012B Dual 4-Input NAND Gate System Logic Semiconductor

Image Gallery

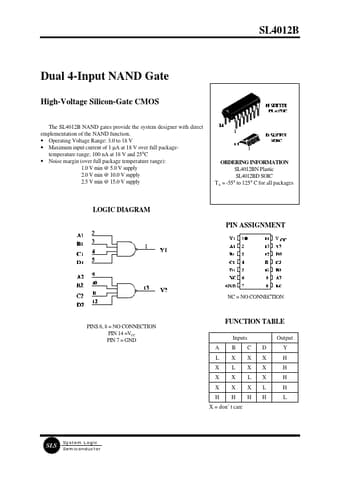

SL4012B Datasheet Preview Page 2 SL4012B Datasheet Preview Page 3
