SL4017B Datasheet - System Logic Semiconductor

SL4017B Counter/Divider

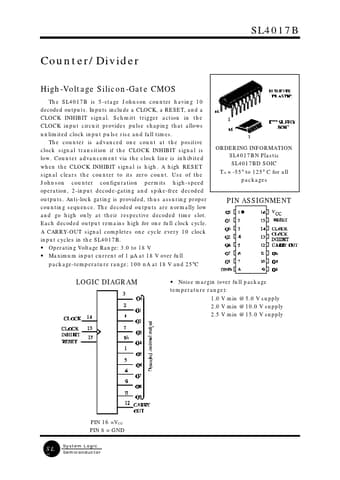

SL4017B Counter/Divider High-Voltage Silicon-Gate CMOS The SL4017B is 5-stage Johnson counter having 10 decoded outputs. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the CLOCK input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBI.

SL4017B Datasheet (68.86 KB)

Preview of SL4017B PDF

Datasheet Details

Part number:

SL4017B

Manufacturer:

System Logic Semiconductor

File Size:

68.86 KB

Description:

Counter/divider.
