SL4224E, SL3232E - (SLxxxxE) RS-232 Transmitters/Receivers

SL4224E Description

www.DataSheet4U.com ® ISL3232E, ISL4221E, ISL4223E Data Sheet September 13, 2007 FN6045.3 QFN Packaged, ±15kV ESD Protected, +2.7V to +5.5V, 150nA, .
PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT INVALID System power supply input (2.

SL4224E Applications

* are PDAs, Palmtops, and hand-held products where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions, reduce the standby supply current to a 150nA trickle. Tiny 5mmx5mm Quad Flat No-Lead (Q

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SL4224E, SL3232E. Please refer to the document for exact specifications by model.

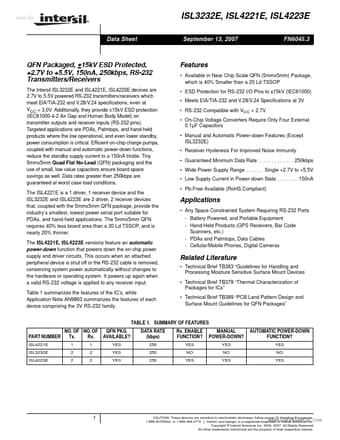

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SL4224E, SL3232E
Manufacturer
Intersil Corporation
File Size
397.98 KB
Datasheet
SL3232E_IntersilCorporation.pdf
Description
(SLxxxxE) RS-232 Transmitters/Receivers
Note
This datasheet PDF includes multiple part numbers: SL4224E, SL3232E.
Please refer to the document for exact specifications by model.
