SL4001B Quad 2-Input NOR Gate

SL4001B Quad 2-Input NOR Gate High-Voltage Silicon-Gate CMOS The SL4001B NOR gates provide the system designer with direct emplementation of the NOR function. Operating Voltage Range: 3.0 to 18 V Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply ORDERING INFORMATION SL4001BN Plastic SL4001B.

SL4001B Datasheet (31.50 KB)

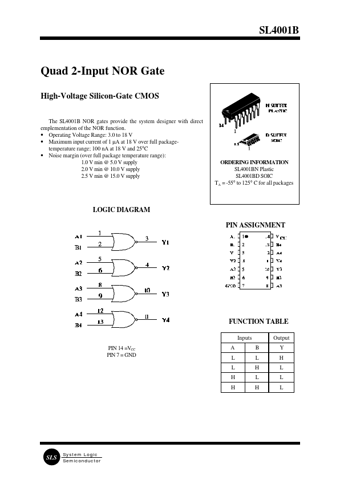

Preview of SL4001B PDF

Datasheet Details

Part number:

SL4001B

Manufacturer:

System Logic Semiconductor

File Size:

31.50 KB

Description:

Quad 2-input nor gate.
