SL4013B Dual D Flip-Flop

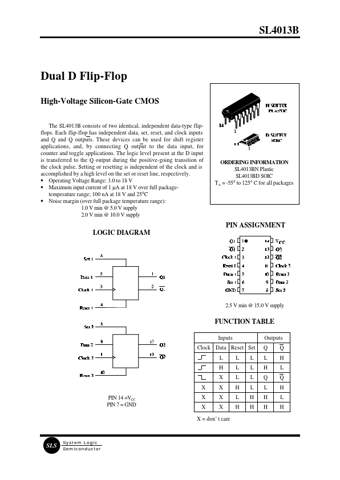

SL4013B Dual D Flip-Flop High-Voltage Silicon-Gate CMOS The SL4013B consists of two identical, independent data-type flipflops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or res.

SL4013B Datasheet (39.63 KB)

Preview of SL4013B PDF
SL4013B Datasheet Preview Page 2 SL4013B Datasheet Preview Page 3

Datasheet Details

Part number:

SL4013B

Manufacturer:

System Logic Semiconductor

File Size:

39.63 KB

Description:

Dual d flip-flop.
