SL4019B Datasheet - System Logic Semiconductor

SL4019B Quad AND/OR Select Gate

SL4019B Quad AND/OR Select Gate High-Voltage Silicon-Gate CMOS The SL4019B types consist of four AND/OR select gate configurations, each consisting of two 2-input AND gates driving a single 2-input gate. Selection is accomplished by control bits Sa and Sb .In addition to selection of either channel A or channel B information, the control bits can be applied simultaneously to accomplish the logical A + B function Operating Voltage Range: 3.0 to 18 V Maximum input current of 1.

SL4019B_SystemLogicSemiconductor.pdf

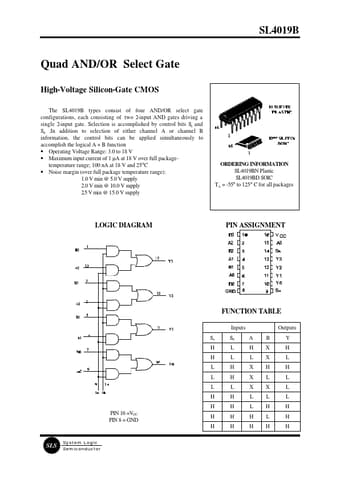

Preview of SL4019B PDF
SL4019B Datasheet Preview Page 2 SL4019B Datasheet Preview Page 3

Datasheet Details

Part number:

SL4019B

Manufacturer:

System Logic Semiconductor

File Size:

43.56 KB

Description:

Quad and/or select gate.
