SL450H65TL Datasheet - Slkor

IGBT Module

SL450H65TL Features

* z Short Circuit Rated 10μs z Low Saturation Voltage: VCE (sat) = 1.60V @ IC = 450A , TC=25℃ z Low Switching Loss z 100% RBSOA Tested（2×Ic） z Low Stray Inductance z Lead Free, Compliant with RoHS Requirement Applications： z UPS z High Power Converters z Motor Drives z Servo Drives z Wind Turbines I

SL450H65TL General Description

Conditions Min Typ Max VGE(th) Gate-Emitter Threshold Voltage VCE(sat) Collector-Emitter Saturation Voltage ICES.

SL450H65TL Datasheet (880.01 KB)

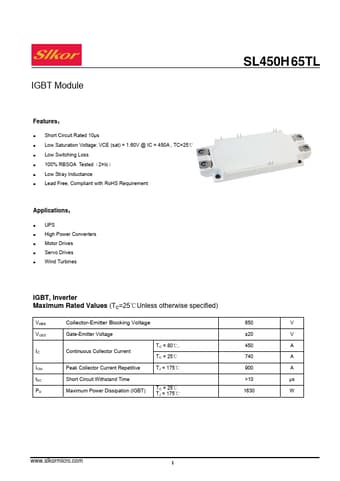

SL450H65TL Datasheet Preview — Preview of SL450H65TL PDF

Datasheet Details

Part number:

SL450H65TL

Manufacturer:

Slkor

File Size:

880.01 KB

Description:

Igbt module.
