SL4516B Presettable Up/Down Counter

SL4516B Presettable Up/Down Counter High-Voltage Silicon-Gate CMOS The SL4516B Presettable Binary Up/Down Counter consists of four synchronously clocked D -type flip-flops (with a gating structure to provide T-type flip-flop capability) connected as counters. This counter can be cleared by a high level on the RESET line, and can be preset to any binary number present on the jam inputs by a high level on the PRESET ENABLE line. If the CARRY-IN input is held low, the counter advances up or down o.

SL4516B Datasheet (66.47 KB)

Preview of SL4516B PDF

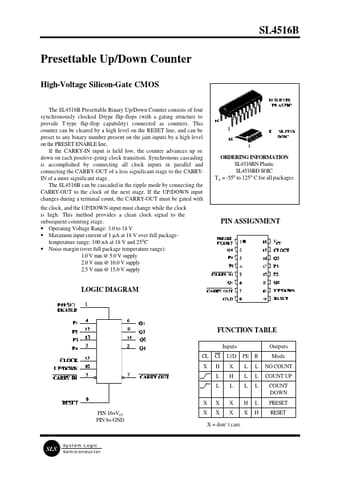

SL4516B Datasheet Preview Page 2 SL4516B Datasheet Preview Page 3

Datasheet Details

Part number:

SL4516B

Manufacturer:

System Logic Semiconductor

File Size:

66.47 KB

Description:

Presettable up/down counter.
