3401 Datasheet, mosfet equivalent, GFD

3401 Features

• Mosfet
• VDS = -30V,ID = -4.2A RDS(ON) < 130mΩ @ VGS=-2.5V RDS(ON) < 75mΩ @ VGS=-4.5V RDS(ON) < 65mΩ @ VGS=-10V
• High Power and current handing capability
• Lead free

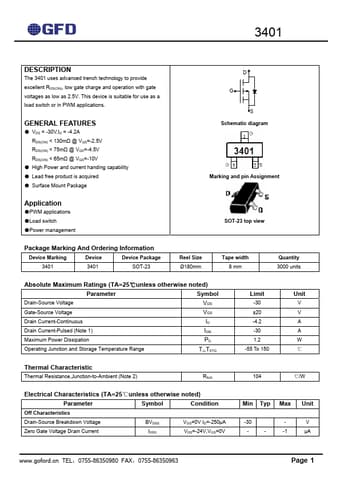

PDF File Details

Part number:

3401

Manufacturer:

GFD

File Size:

500.19kb

Download:

📄 Datasheet

Description:

Mosfet. The 3401 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5

3401 Application

• Applications GENERAL FEATURES
• VDS = -30V,ID = -4.2A RDS(ON) < 130mΩ @ VGS=-2.5V RDS(ON) < 75mΩ @ VGS=-4.5V RDS(ON) < 65mΩ @ VGS=-10V
