2SA1235A - Silicon Epitaxial Planar Transistor

2SA1235A Description

Production specification Silicon Epitaxial Planar Transistor .

2SA1235A Features

* Small collector to emitter saturation voltage VCE(sat)=-0.3V max(@IC=-100mA,IB=-10mA). Pb Lead-free
* Excellent lineary DC forward current gain.

2SA1235A Applications

* PNP epitaxial type transistor designed for low frequency.
* Voltage amplify application. ORDERING INFORMATION Type No. Marking 2SA1235A ME/MF/MG SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC Tj,Tstg Col

📥 Download Datasheet

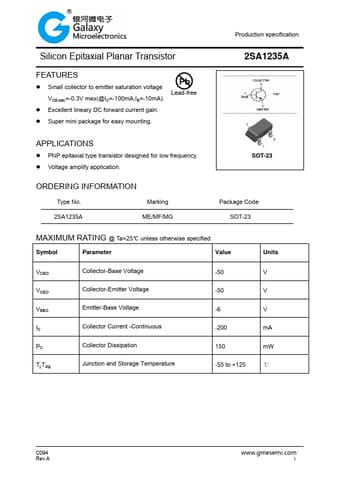

Preview of 2SA1235A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1235A
Manufacturer
GME
File Size
177.79 KB
Datasheet
2SA1235A-GME.pdf
Description
Silicon Epitaxial Planar Transistor
