2SC3149 - NPN Transistor

2SC3149 Description

Production specification NPN Triple Diffused Planar Silicon Transistor .

2SC3149 Features

* High breakdown voltage(VCBO≥900V).
* Fast switching speed. Pb
* Wide ASO. Lead-free 2SC3149 PPLICATIONS

2SC3149 Applications

* TO-251 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter Value Units VCBO Collector-Base Volage 900 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7V IC Collector Current 1.5 A ICP Collector Current(Pulse) 5A IB Base

📥 Download Datasheet

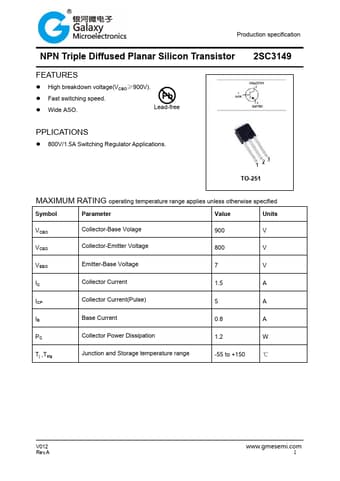

Preview of 2SC3149 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3149
Manufacturer
GME
File Size
212.42 KB
Datasheet
2SC3149-GME.pdf
Description
NPN Transistor
