2SD602A Silicon NPN Transistor

2SD602A Description

Silicon Epitaxial Planar Transistor .

2SD602A Applications

* z General purpose amplifier applications SOT-23 ORDERING INFORMATION Type No. Marking 2SD602A XQ/XR/XS Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base V

📥 Download Datasheet

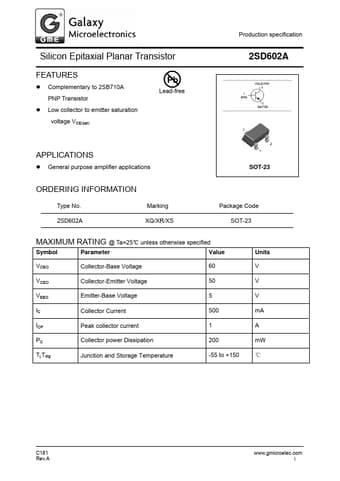

Preview of 2SD602A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD602A
Manufacturer
GME
File Size
167.14 KB
Datasheet
2SD602A-GME.pdf
Description
Silicon NPN Transistor
