3DD13003 High Voltage Fast Switching NPN Power Transistor

3DD13003 Description

Production specification High Voltage Fast Switching NPN Power Transistor 3DD13003 .

3DD13003 Features

* PC=1W(Mounted on ceramic substrate).
* High speed switching.
* Die size:1.34
* 1.34

3DD13003 Applications

* Mainly used for compact electronic energy saving lamps, electronic ballast and mobile phone chargers power switch circuit ORDERING INFORMATION Type No. Marking 3DD13003 13003 SOT-89S Package Code SOT-89S MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO

📥 Download Datasheet

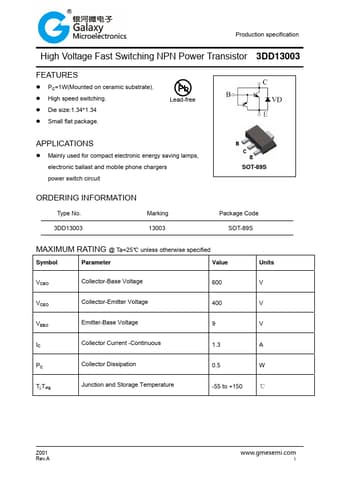

Preview of 3DD13003 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
3DD13003
Manufacturer
GME
File Size
305.32 KB
Datasheet
3DD13003-GME.pdf
Description
High Voltage Fast Switching NPN Power Transistor
