DTA114ECA - Digital Transistor

DTA114ECA Description

Production specification Digital Transistor DTA(R1=R2 SERIES)CA .

DTA114ECA Features

* Pb
* Epitaxial planar die construction. Lead-free
* Complementary NPN types available(DTC).
* Built-in biasing resistors,R1=R2.

DTA114ECA Applications

* The PNP style digital transistor. ORDERING INFORMATION Type No. Marking DTA114ECA DTA124ECA DTA143ECA DTA144ECA 14 15 13 16 SOT-23 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCC Supply Voltage Input Voltage VIN Output

📥 Download Datasheet

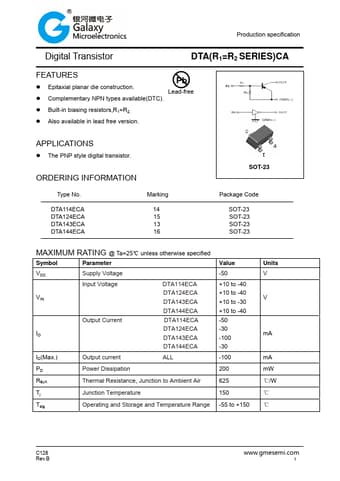

Preview of DTA114ECA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTA114ECA
Manufacturer
GME
File Size
201.01 KB
Datasheet
DTA114ECA-GME.pdf
Description
Digital Transistor
