MMBT2369 - NPN General Purpose Amplifier

MMBT2369 Description

NPN General Purpose Amplifier .

MMBT2369 Applications

* z Use as a medium power amplifier. ORDERING INFORMATION Type No. Marking MMBT2369 M1J SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PC RθJA Tj,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Volta

📥 Download Datasheet

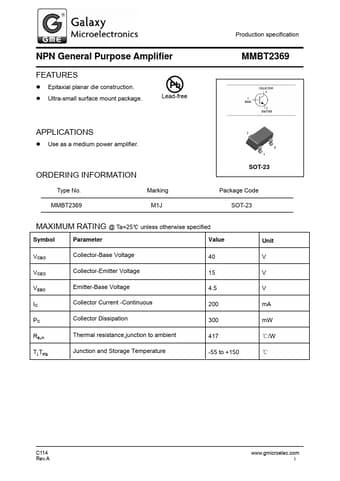

Preview of MMBT2369 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBT2369
Manufacturer
GME
File Size
136.10 KB
Datasheet
MMBT2369-GME.pdf
Description
NPN General Purpose Amplifier
