MMBT2369A, NPN GENERAL PURPOSE SWITCHING TRANSISTOR

MMBT2369A NPN GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE 15 Volts POWER 225 mWatts .

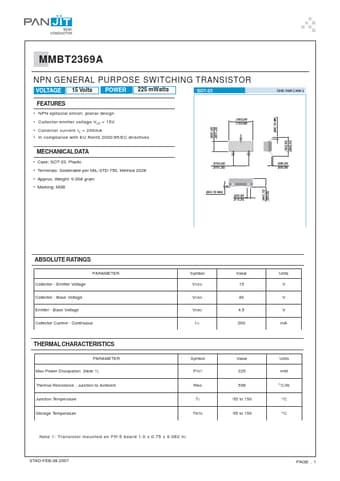

datasheet Preview Page 1 from Datasheet4u.com

MMBT2369A-PanJitInternational.pdf

MMBT2369A Datasheet Preview — Preview of MMBT2369A PDF

Datasheet Details

Part number:

MMBT2369A

Manufacturer:

Pan Jit International

File Size:

165.73 KB

Description:

NPN GENERAL PURPOSE SWITCHING TRANSISTOR

Features

* NPN epitaxial silicon, planar design
* Collector-emitter voltage VCE = 15V
* Collector current IC = 200mA
* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: SOT-23, Plastic
* Terminals: Solderable per MIL-STD-750, Method 2026
