S9016 NPN Silicon Epitaxial Planar Transistor

S9016 Description

NPN Silicon Epitaxial Planar Transistor .

S9016 Features

* Collector Current. (IC= 25mA）

S9016 Applications

* Pb Lead-free
* AM converter, FM/RM amplifier of low noise. Production specification S9016 ORDERING INFORMATION Type No. Marking S9016 Y6 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 30 VCEO Coll

📥 Download Datasheet

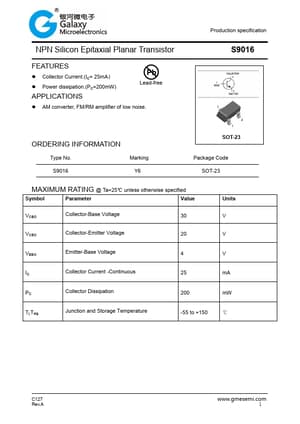

Preview of S9016 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S9016
Manufacturer
GME
File Size
236.77 KB
Datasheet
S9016-GME.pdf
Description
NPN Silicon Epitaxial Planar Transistor
