S9013W - NPN Transistor

S9013W Description

NPN Silicon Epitaxial Planar Transistor EATURES z High Collector Current.(IC= 500mA） z Complementary To S9012.z Excellent HFE Linearity.z Power dis.

S9013W Applications

* z High Collector Current. Production specification S9013W ORDERING INFORMATION Type No. Marking S9013W J3 SOT-323 Package Code SOT-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 40 VCEO Collector-Emitter Voltage 25 VEBO Em

📥 Download Datasheet

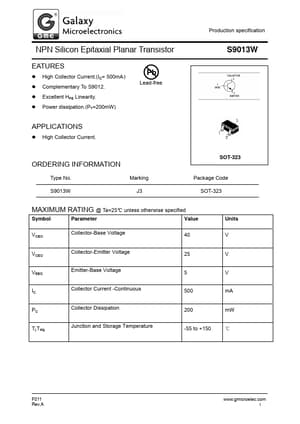

Preview of S9013W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S9013W
Manufacturer
GME
File Size
207.57 KB
Datasheet
S9013W-GME.pdf
Description
NPN Transistor
