SH54CF, SH52CF, SCHOTTKY BARRIER RECTIFIERS

Schottky Barrier Rectifiers Production specification SH52CF *SH54CF .

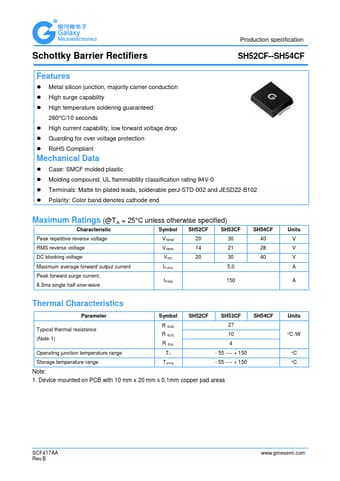

datasheet Preview Page 1 from Datasheet4u.com

SH52CF-GME.pdf

This datasheet PDF includes multiple part numbers: SH54CF, SH52CF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

SH54CF, SH52CF

Manufacturer:

GME

File Size:

434.11 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SH54CF, SH52CF.
Please refer to the document for exact specifications by model.

Features

* Metal silicon junction, majority carrier conduction
* High surge capability
* High temperature soldering guaranteed: 260°C/10 seconds
* High current capability, low forward voltage drop
* Guarding for over voltage protection
* RoHS Compliant Mechanical Data
* Case: SMCF
