SH5126SV325816NI Datasheet - SMART Modular

SH5126SV325816NI - 4GB (512Mx64) DDR3 SDRAM Module

512Mx64 (4GB), DDR3, 204-Pin Unbuffered SO-DIMM, NonECC, 256Mx8 Based, PC3L-12800, DDR3L-1600-11-11-11, 30.00mm, 1.35V/1.5V, Halogen-Free & RoHS Compliant.

Device Vendor Nanya, Rev.

I NT5CC256M8IN-DI (All specifications of this module are subject to change without notice.) Corporate Headquarters:

SH5126SV325816NI Features

* Standard = JEDEC

* ZQ calibration supported

* Configuration = Non-ECC

* On chip DLL align DQ, DQS and DQS transition

* Number of Module Ranks = 2 with CK transition

* Number of Devices = 16

* DM write data-in at both the rising and fa

SH5126SV325816NI-SMARTModular.pdf

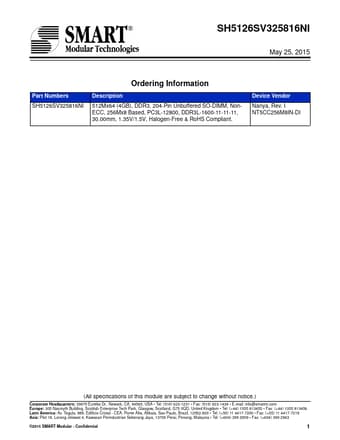

Preview of SH5126SV325816NI PDF
SH5126SV325816NI Datasheet Preview Page 2 SH5126SV325816NI Datasheet Preview Page 3

Datasheet Details

Part number:

SH5126SV325816NI

Manufacturer:

SMART Modular

File Size:

426.95 KB

Description:

4gb (512mx64) ddr3 sdram module.
