SH5126SV351816-SE Datasheet (SMART Modular) - 4GB (512Mx64) DDR3 SDRAM Module

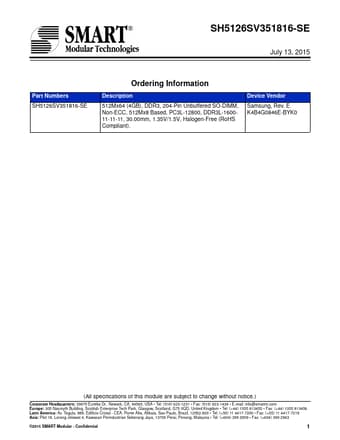

SH5126SV351816-SE, 4GB (512Mx64) DDR3 SDRAM Module

512Mx64 (4GB), DDR3, 204-Pin Unbuffered SO-DIMM, Non-ECC, 512Mx8 Based, PC3L-12800, DDR3L-160011-11-11, 30.00mm, 1.35V/1.5V, Halogen-Free (RoHS Compliant).

Device Vendor Samsung, Rev.

E K4B4G0846E-BYK0 (All specifications of this module are subject to change without notice.) Corporate Headquarters

SH5126SV351816-SE Features

* Standard = JEDEC

* ZQ calibration supported

* Configuration = Non-ECC

* On chip DLL align DQ, DQS and DQS transition

* Number of Module Ranks = 1 with CK transition

* Number of Devices = 8

* DM write data-in at both the rising and fal
