SS2150 - SCHOTTKY BARRIER RECTIFIERS

GME

📥 Download Datasheet

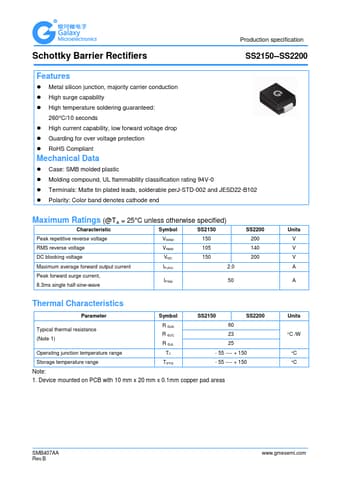

SS2150 Datasheet Preview — Preview of SS2150 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS2150
Manufacturer: GME
File Size: 525.54 KB
Datasheet: SS2150-GME.pdf
Description: SCHOTTKY BARRIER RECTIFIERS

SS2150 Product details

Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
Guarding for over voltage protection.
RoHS Compliant Mechanical Data.
Case: SMB molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102.
Polarity: Color band denotes c.
