SS2150A - Schottky Barrier Rectifiers

GME

📥 Download Datasheet

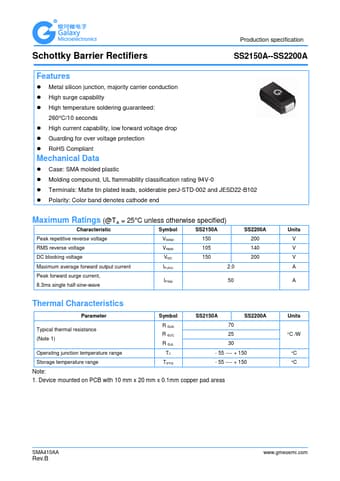

SS2150A Datasheet Preview — Preview of SS2150A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS2150A
Manufacturer: GME
File Size: 478.62 KB
Datasheet: SS2150A-GME.pdf
Description: Schottky Barrier Rectifiers

SS2150A Product details

Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
Guarding for over voltage protection.
RoHS Compliant Mechanical Data.
Case: SMA molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102.
Polarity: Color band denotes c.
