US5GBF

Surface Mount Ultrafast RecoveryR ectifier

US5GBF Features

* For surface mounted applications

* Low profile package

* Glass Passivated Chip Junction

* Easy to pick and place

* High efficiency

* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA

* Case: SMBF

* Terminals: Sold

US5GBF General Description

1 Cathode 2 Anode 12 Top View Marking Code: U5AB~U5MB Simplified outline SMBF symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %..

US5GBF Datasheet (106.29 KB)

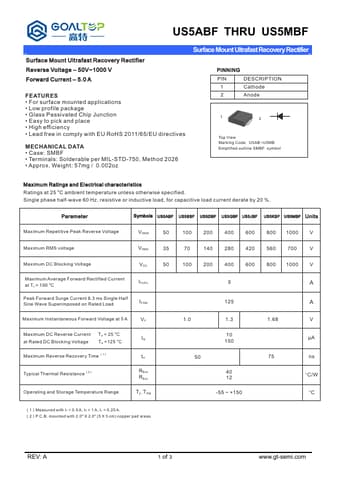

Preview of US5GBF PDF

Datasheet Details

Part number:

US5GBF

Manufacturer:

GOALTOP

File Size:

106.29 KB

Description:

Surface mount ultrafast recoveryr ectifier.
