US5JBF - Surface Mount Ultrafast RecoveryR ectifier

1 Cathode 2 Anode 12 Top View Marking Code: U5AB~U5MB Simplified outline SMBF symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.

Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.

US5JBF Features

* For surface mounted applications

* Low profile package

* Glass Passivated Chip Junction

* Easy to pick and place

* High efficiency

* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA

* Case: SMBF

* Terminals: Sold

US5ABF-GOALTOP.pdf

This datasheet PDF includes multiple part numbers: US5JBF, US5ABF. Please refer to the document for exact specifications by model.

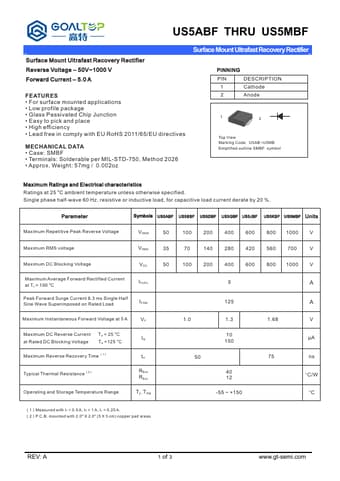

US5JBF Datasheet Preview Page 2 US5JBF Datasheet Preview Page 3

Datasheet Details

Part number:

US5JBF, US5ABF

Manufacturer:

GOALTOP

File Size:

106.29 KB

Description:

Surface mount ultrafast recoveryr ectifier.

Note:

This datasheet PDF includes multiple part numbers: US5JBF, US5ABF.
Please refer to the document for exact specifications by model.
