1N4944G - Glass Passivated Fast Recovery Rectifiers

Product Overview

GOOD-ARK

Part number	1N4944G
Manufacturer	GOOD-ARK
File Size	158.34 KB
Description	Glass Passivated Fast Recovery Rectifiers
Datasheet	1N4944G Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4944G, 1N4942G. Please refer to the document for exact specifications by model.

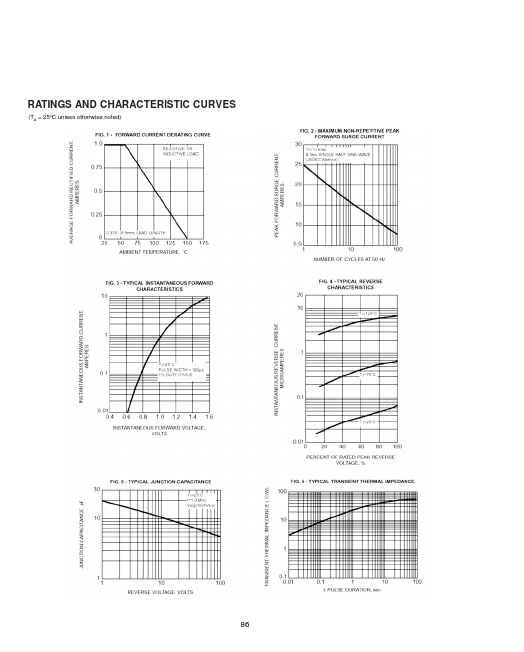

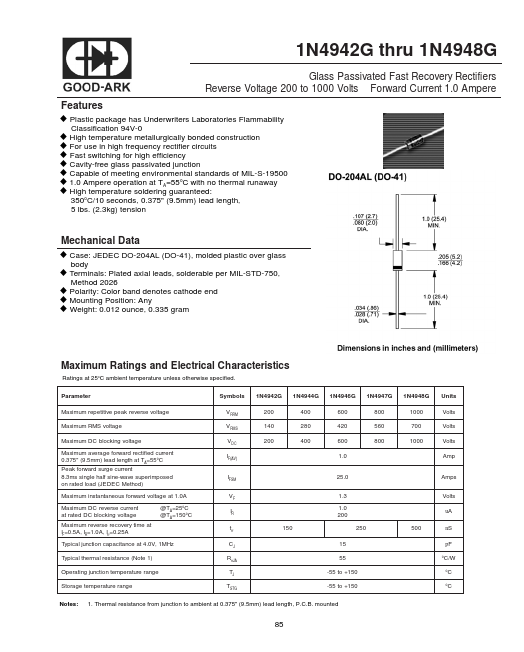

Additional preview pages of the 1N4944G datasheet.

Plastic package has Underwriters Laboratories Flammability Classification 94V-0 High temperature metallurgically bonded construction For use in high frequency rectifier circuits Fast switching for high efficiency Cavity-free glass passivated junction Capable of meeting environmental standards of MIL-S-19500 1.0 Ampere operation at TA=55oC with no High temperature soldering guaranteed: thermal runaway 350oC/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension.
