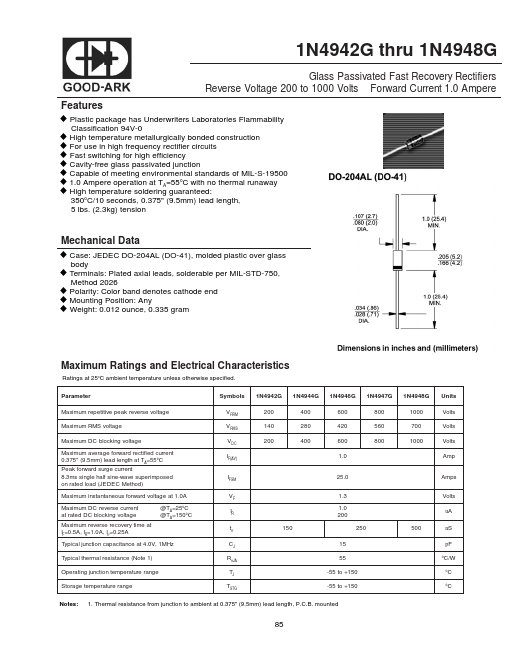

1N4942G thru 1N4948G
Glass Passivated Fast Recovery Rectifiers Reverse Voltage 200 to 1000 Volts Forward Current 1.0 Ampere
Features
Plastic package has Underwriters Laboratories Flammability
Classification 94V-0
High temperature metallurgically bonded construction
For use in high frequency rectifier circuits Fast switching for high efficiency
Cavity-free glass passivated junction
Capable of meeting environmental standards of MIL-S-19500
1.0 Ampere operation at TA=55oC with no High temperature soldering guaranteed:
thermal
runaway
350oC/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.
