BAV99DW - Switching Diode

This page provides the datasheet information for the BAV99DW, a member of the BAV99DW-GOOD Switching Diode family.

Datasheet Summary

Description

of changes First issue www.goodark.com 3 Doc.No.643141 BAV99DW GOOD-ARK Electronics Disclaimers These materials are intended as a reference to assist our customers in the selection of the Suzhou Good-Ark product best suited to the customer’s application; they do not convey any license under any

Features

  • Fast Switching Speed.
  • For General Purpose Switching.

📥 Download Datasheet

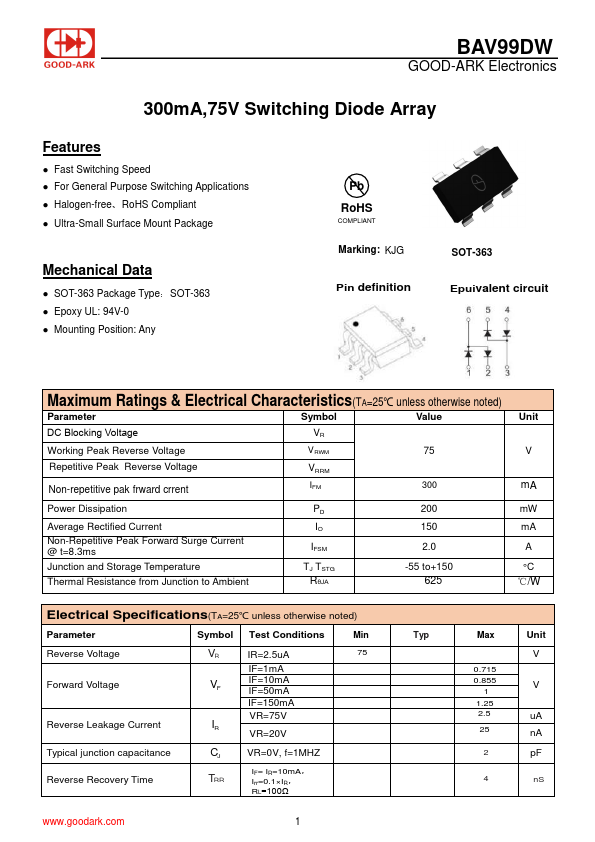

Datasheet preview – BAV99DW

Datasheet Details

Part number BAV99DW
Manufacturer GOOD-ARK
File Size 1.02 MB
Description Switching Diode
Datasheet download datasheet BAV99DW Datasheet

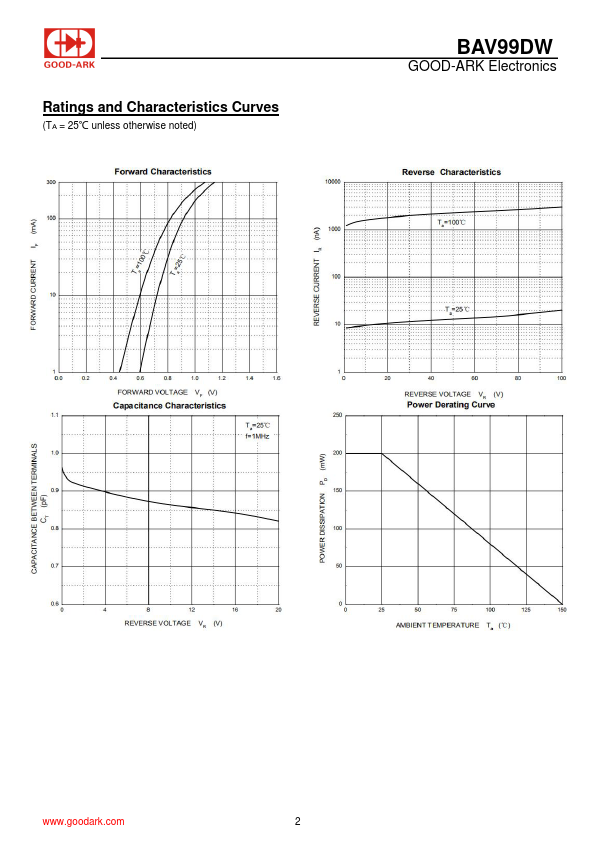

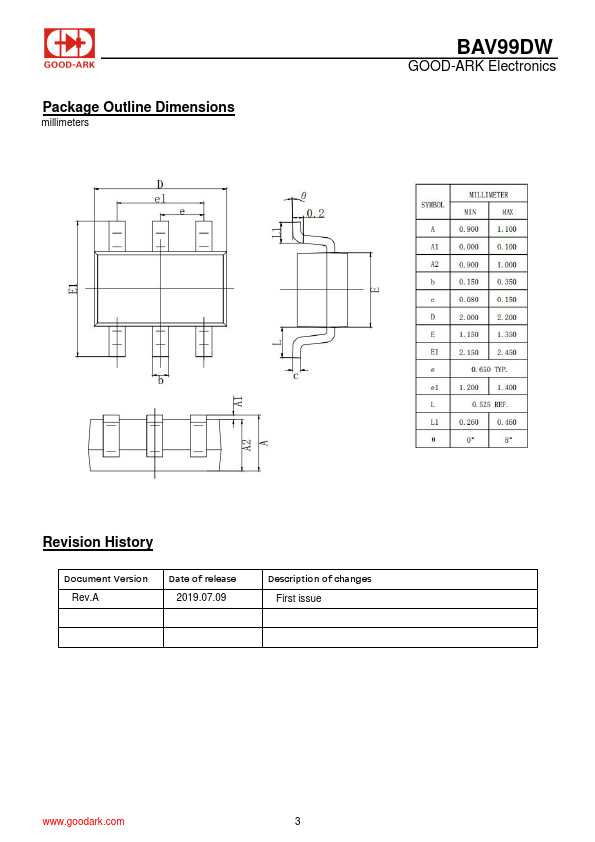

Additional preview pages of the BAV99DW datasheet.

📁 Similar Datasheet

  • BAV99DW - SMD Switching Diode Array (Formosa MS)
  • BAV99DW - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • BAV99DW - Plastic-Encapsulate Diode (MCC)
  • BAV99DW - Surface Mount Switching Diode Array (SeCoS)
  • BAV99DW - Surface Mount Fast Switching Diodes (LGE)
  • BAV99DW - Switching Diode (JCET)
  • BAV99DW - (BAVxxDW) Surface Mount Switching Multi-Chip Diode Array (Weitron Technology)
  • BAV99DW - DIODE (WEJ)
  • BAV99DW - Quad Surface Mount Switching Diode Array (Kexin)
  • BAV99DW - Plastic-Encapsulate Diode (WILLAS)
Other Datasheets by GOOD-ARK
  • BAV99 - Switching Diode
  • BAV100 - Fast Switching Diode
  • BAV101 - Fast Switching Diode
  • BAV102 - Fast Switching Diode
  • BAV103 - Fast Switching Diode
  • BAV19 - (BAV19 - BAV21) Small-Signal Diode
  • BAV19W - Switching Diodes
  • BAV19WS - Switching Diodes

Full PDF Text Transcription

Click to expand full text
BAV99DW GOOD-ARK Electronics 300mA,75V Switching Diode Array Features ● Fast Switching Speed ● For General Purpose Switching Applications ● Halogen-free、RoHS Compliant ● Ultra-Small Surface Mount Package Mechanical Data ● SOT-363 Package Type：SOT-363 ● Epoxy UL: 94V-0 ● Mounting Position: Any Pb RoHS COMPLIANT Marking: KJG SOT-363 Pin definitiSoOnTSO-22T33- Epuivalent circuit Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted) Parameter Symbol Value DC Blocking Voltage VR Working Peak Reverse Voltage V RWM 75 Repetitive Peak Reverse Voltage VRRM Non-repetitive pak frward crrent IFM 300 Power Dissipation Average Rectified Current Non-Repetitive Peak Forward Surge Current @ t=8.
