BY133 - 1A High Voltage Rectifiers

This page provides the datasheet information for the BY133, a member of the BY127 1A High Voltage Rectifiers family.

Datasheet Summary

Description

of changes Released Datasheet Modify document format www.goodark.com 4 Version: Rev.B BY127 thru BY133 GOOD-ARK Electronics Disclaimers These materials are intended as a reference to assist our customers in the selection of the Suzhou Good-Ark product best suited to the customer’s application; t

Features

  • Low leakage current.
  • Low forward voltage drop.
  • Glass passivated chip junction.
  • For general purpose.

📥 Download Datasheet

Datasheet preview – BY133

Datasheet Details

Part number BY133
Manufacturer GOOD-ARK
File Size 470.01 KB
Description 1A High Voltage Rectifiers
Datasheet download datasheet BY133 Datasheet

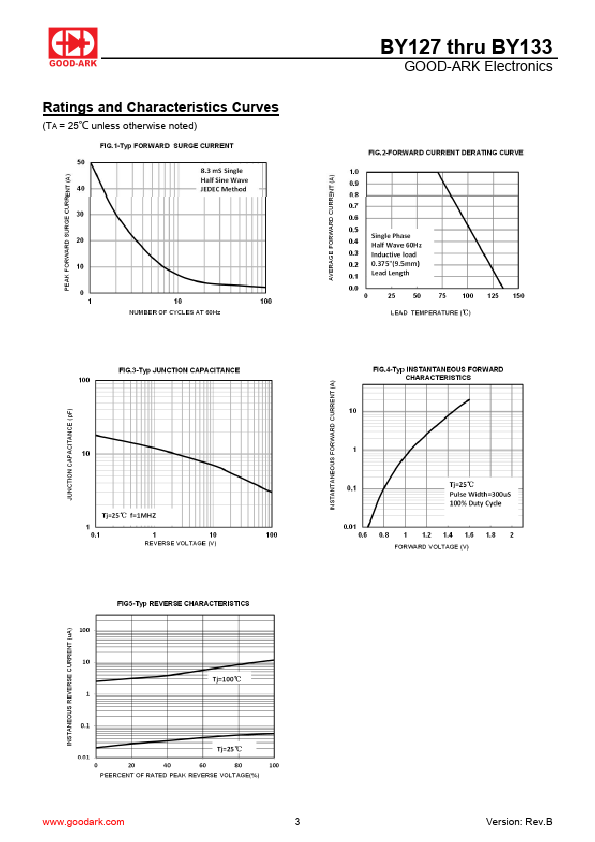

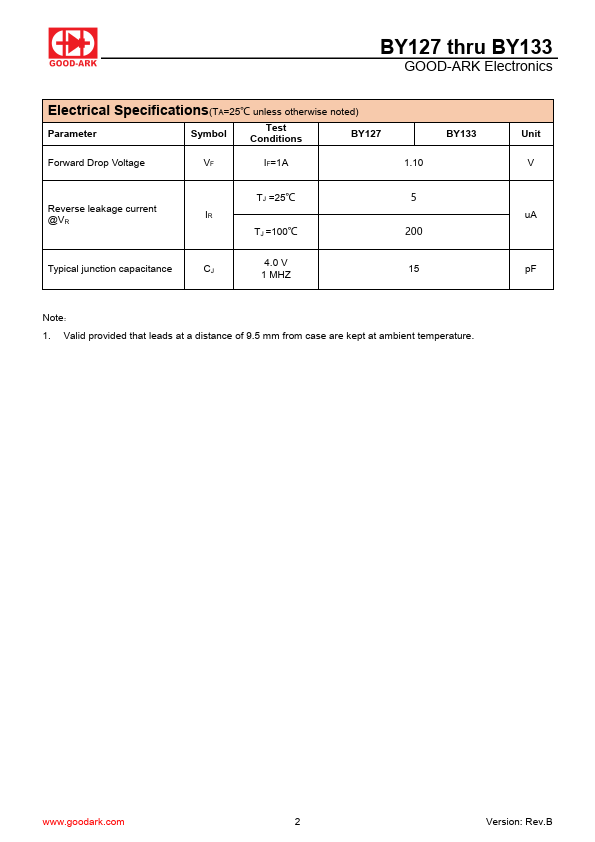

Additional preview pages of the BY133 datasheet.

📁 Similar Datasheet

  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
  • BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - SILICON RECTIFIER DIODES (EIC)
  • BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
Other Datasheets by GOOD-ARK
  • BY127 - 1A High Voltage Rectifiers

Full PDF Text Transcription

Click to expand full text

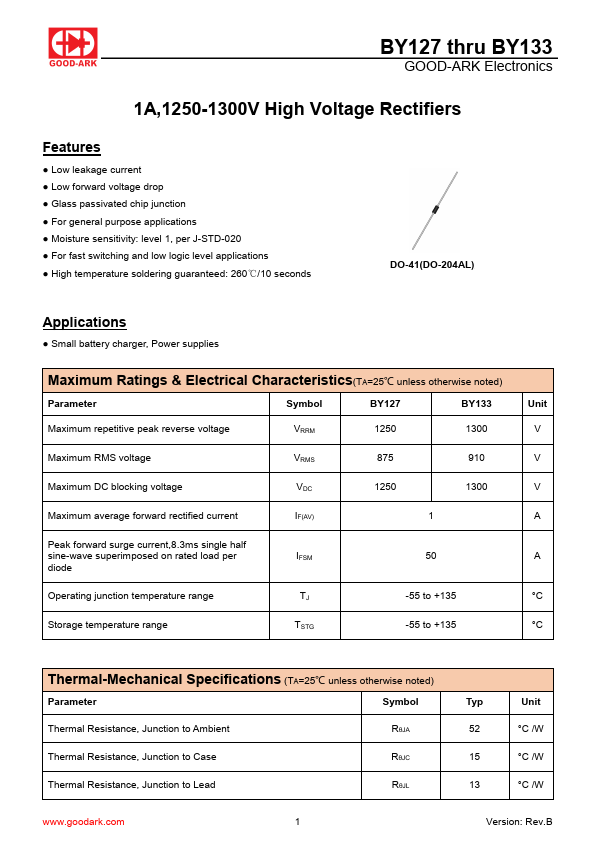

BY127 thru BY133 GOOD-ARK Electronics 1A,1250-1300V High Voltage Rectifiers Features ● Low leakage current ● Low forward voltage drop ● Glass passivated chip junction ● For general purpose applications ● Moisture sensitivity: level 1, per J-STD-020 ● For fast switching and low logic level applications ● High temperature soldering guaranteed: 260℃/10 seconds DO-41(DO-204AL) Applications ● Small battery charger, Power supplies Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted) Parameter Symbol BY127 BY133 Unit Maximum repetitive peak reverse voltage VRRM 1250 1300 V Maximum RMS voltage VRMS 875 910 V Maximum DC blocking voltage VDC 1250 1300 V Maximum average forward rectified current IF(AV) 1 A Peak forward surge current,8.
