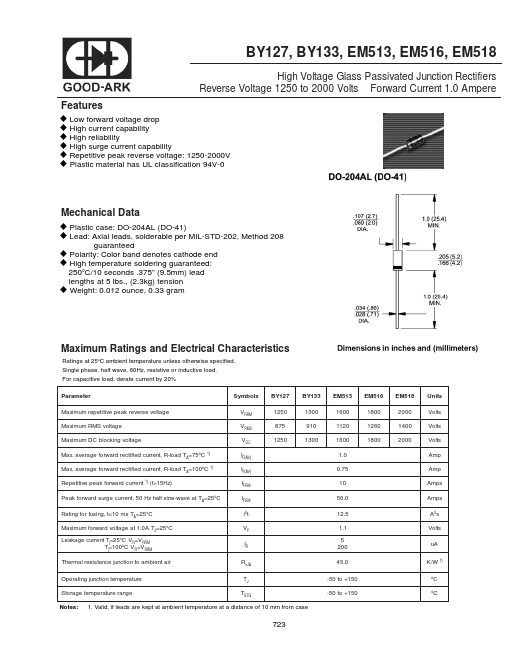

EM513 - GENERAL PURPOSE PLASTIC RECTIFIER

GOOD-ARK

Datasheet Details

Part number	EM513
Manufacturer	GOOD-ARK
File Size	102.43 KB
Description	GENERAL PURPOSE PLASTIC RECTIFIER
Datasheet	EM513-GOODARK.pdf

Low forward voltage drop High current capability High reliability High surge current capability Repetitive peak reverse voltage: 1250-2000V Plastic material has UL classification 94V-0 Mechanical Data Plastic case: DO-204AL (DO-41) Lead: Axial leads, solderable per MIL-STD-202, Method 208 guaranteed Polarity: Color band denotes cathode end High temperature soldering guaranteed: 250oC/10 seconds .375” (9.5mm) lead lengths at 5 lbs. , (2.3kg) tension Weight: 0.012 ounce, 0.33 gram Maximum Ratings.
