MBR3050PT, MBR3035PT-GOOD Dual Schottky Barrier Rectifiers

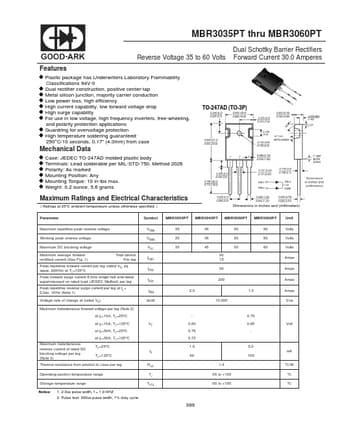

📥 Download Datasheet  Datasheet Preview Page 1

Description

MBR3035PT thru MBR3060PT Dual Schottky Barrier Rectifiers Reverse Voltage 35 to 60 Volts Forward Current 30.0 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR3050PT, MBR3035PT-GOOD. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
MBR3050PT, MBR3035PT-GOOD
Manufacturer
GOOD-ARK
File Size
203.64 KB
Datasheet
MBR3035PT-GOOD-ARK.pdf
Description
Dual Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR3050PT, MBR3035PT-GOOD.
Please refer to the document for exact specifications by model.

Features

* ‹ Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 ‹ Dual rectifier construction, positive center-tap ‹ Metal silicon junction, majority carrier conduction ‹ Low power loss, high efficiency ‹ High current capability, low forward voltage drop ‹ High surge capability ‹ Fo

Applications

* ‹ Guardring for overvoltage protection ‹ High temperature soldering guaranteed: 250°C/10 seconds, 0.17” (4.3mm) from case Mechanical Data ‹ Case: JEDEC TO-247AD molded plastic body ‹ Terminals: Lead solderable per MIL-STD-750, Method 2026 ‹ Polarity: As marked ‹ Mounting Position: Any ‹ Mounting Tor
