SSF2814E, SSF2814E-GOOD N-Channel MOSFET

SSF2814E Description

.
The SSF2814E uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

SSF2814E Features

* VDS = 20V,ID = 7A RDS(ON) < 28mΩ @ VGS=2.5V RDS(ON) < 26mΩ @ VGS=3.1V RDS(ON) < 22mΩ @ VGS=4V RDS(ON) < 20mΩ @ VGS=4.5V ESD Rating：2000V HBM
* High Power and current handing capability
* Lead free product
* Surface Mount Package Schematic Diagram Marking and Pin Assignment APPLIC

SSF2814E Applications

* Battery protection
* Load switch
* Power management PACKAGE MARKING AND ORDERING INFORMATION Device Marking Device Device Package Reel Size SSF2814E SSF2814E TSSOP-8 Ø330mm TSSOP-8 Top View Tape Width 12mm Quantity 3000 units ABSOLUTE MAXIMUM RATINGS (TA=25℃unless otherwise n

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SSF2814E, SSF2814E-GOOD. Please refer to the document for exact specifications by model.

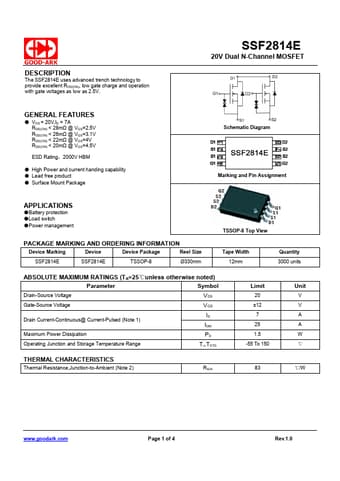

datasheet Preview Page 2 datasheet Preview Page 3
