SSF3605S Datasheet, P-channel Mosfet, GOOD-ARK

P-channel mosfet

📥 Download PDF (441.42 KB)

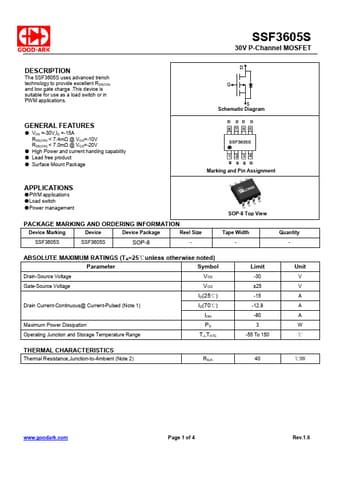

SSF3605S Datasheet Preview Page 1 — Preview of SSF3605S Datasheet

PDF File Details

Part number:

SSF3605S

Manufacturer:

GOOD-ARK

File Size:

441.42 KB

Download:

📄 Download the SSF3605S Datasheet PDF

Description:

P-channel mosfet.
The SSF3605S uses advanced trench technology to provide excellent RDS(ON) and low gate charge .This device is suitable for use as a load switch or in PWM applications.

D
G
S Schematic Diagram

GENERA.

✔ SSF3605S Features

VDS =-30V,ID =-15A RDS(ON) < 7.4mΩ @ VGS=-10V RDS(ON) < 7.0mΩ @ VGS=-20V
High Power and current handing capability
Lead free product
Surface Mount Package Markin

✔ SSF3605S Application

D G S Schematic Diagram GENERAL FEATURES
VDS =-30V,ID =-15A RDS(ON) < 7.4mΩ @ VGS=-10V RDS(ON) < 7.0mΩ
