SSF3617, SSF3617-GOOD - P-Channel MOSFET

GOOD-ARK

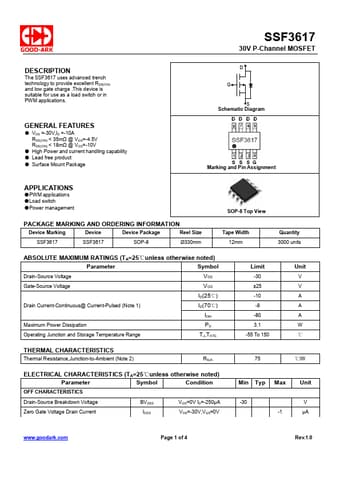

SSF3617 Datasheet Preview — This datasheet PDF includes multiple part numbers: SSF3617, SSF3617-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SSF3617, SSF3617-GOOD
Manufacturer	GOOD-ARK
File Size	434.88 KB
Description	P-Channel MOSFET
Datasheet	SSF3617-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: SSF3617, SSF3617-GOOD. Please refer to the document for exact specifications by model.

SSF3617 Product details

Description

The SSF3617 uses advanced trench technology to provide excellent RDS(ON) and low gate charge .This device is suitable for use as a load switch or in PWM applications.

Features

VDS =-30V,ID =-10A RDS(ON) < 35mΩ @ VGS=-4.5V RDS(ON) < 18mΩ @ VGS=-10V.
High Power and current handling capability.
Lead free product.
Surface Mount Package D G S Schematic Diagram Marking and Pin Assignment.
