SSF3639C - MOSFET

Product Overview

GOOD-ARK

📥 Download Datasheet

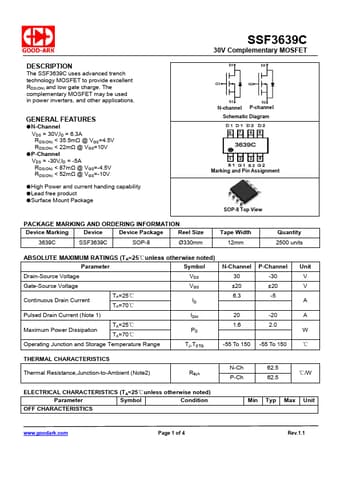

SSF3639C MOSFET by GOOD-ARK - Datasheet Preview — Datasheet preview – SSF3639C

Datasheet Details

Part number	SSF3639C
Manufacturer	GOOD-ARK
File Size	310.01 KB
Description	MOSFET
Datasheet	SSF3639C Datasheet
Note	This datasheet PDF includes multiple part numbers: SSF3639C, SSF3639C-GOOD. Please refer to the document for exact specifications by model.
Additional preview pages of the SSF3639C datasheet.

Product details

Description

The SSF3639C uses advanced trench technology MOSFET to provide excellent RDS(ON) and low gate charge.

Features

N-Channel VDS = 30V,ID = 6.3A RDS(ON) < 35.5mΩ @ VGS=4.5V RDS(ON) < 22mΩ @ VGS=10V.
P-Channel VDS = -30V,ID = -5A RDS(ON) < 87mΩ @ VGS=-4.5V RDS(ON) < 52mΩ @ VGS=-10V.
High Power and current handing capability.
Lead free product.
Surface Mount Package N-channel P-channel Schematic Diagram Marking and Pin Assignment SOP-8 Top View.
