HM338 - Photo Module Infrared receiver

📥 Download Datasheet

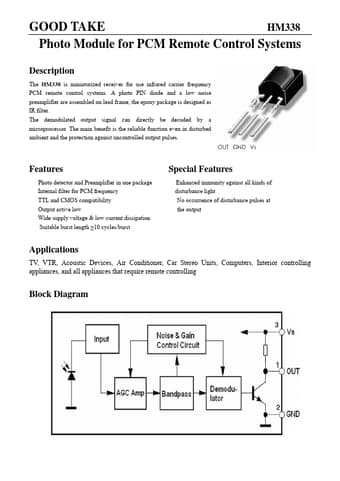

HM338 Datasheet Preview — Preview of HM338 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HM338
Manufacturer: GOOD TAKE
File Size: 254.56 KB
Datasheet: HM338_GOODTAKE.pdf
Description: Photo Module Infrared receiver

HM338 Product details

Description

The HM338 is miniaturized receiver for use infrared carrier frequency PCM remote control systems.

Features

Photo detector and Preamplifier in one package Internal filter for PCM frequency TTL and CMOS compatibility Output active low Wide supply voltage & low current dissipation Suitable burst length ≥10 cycles/burst Special Features Enhanced immunity against all kinds of disturbance light No occurrence of disturbance pulses at the output.
