HM338R-LL-W - Photo Module Infrared receiver

Datasheet Summary

Description

The HM338RLL-W is a miniaturized receiver for use in Infrared carrier frequency PCM remote control systems.

A high quality photo diode and a low noise preamplifier are assembled on lead frame, and the epoxy package is designed as IR filter.

Features

  • Photo detector and Preamplifier in one package.
  • Internal filter for PCM frequency.
  • TTL and CMOS compatibility.
  • Output active low.
  • Suitable burst length ≥10 cycles/burst.
  • Low current consumption 0.35mA 3V.
  • Operates down to 2.2 Volt Special Features.
  • Enhanced immunity against all kinds of disturbance light.
  • No occurrence of disturbance pulses at the output.
  • Lead-Free component in accordance with RoHS directives.

📥 Download Datasheet

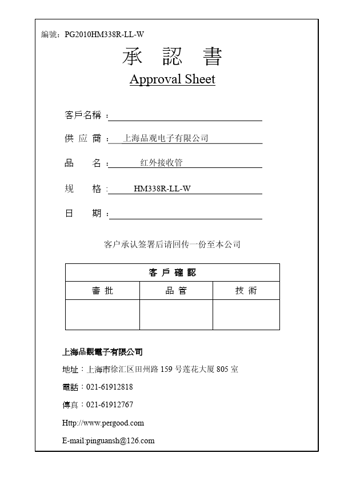

Datasheet preview – HM338R-LL-W

Datasheet Details

Part number HM338R-LL-W
Manufacturer GOOD TAKE
File Size 255.86 KB
Description Photo Module Infrared receiver
Datasheet download datasheet HM338R-LL-W Datasheet
