HST-24091SCR, HST-24011SCR-GROUP - 1000 BASE-T MAGNETICS

HST-24091SCR Description

® A Leading Supplier of Magnetic Components 10/100/1000 BASE-TX 1000BASE-T MAGNETICS .

HST-24091SCR Features

* Compliant with IEEE 802.3 standard for 1000Base-T;
* Primary(PIN2-3,PIN5-6,PIN8-9,PIN11-12) inductance(Lp) 350uH min. @ 100KHz,0.1Vrms,8mA.
* LL(PIN2-3 ShortPIN23+22,PIN5-6 ShortPIN20+19,PIN8-9 ShortPIN17+16, PIN11-12 ShortPIN14+13):0.5uH Max @100KHz, 0.1V
* Cww(PIN2,3 With PIN23,2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HST-24091SCR, HST-24011SCR-GROUP. Please refer to the document for exact specifications by model.

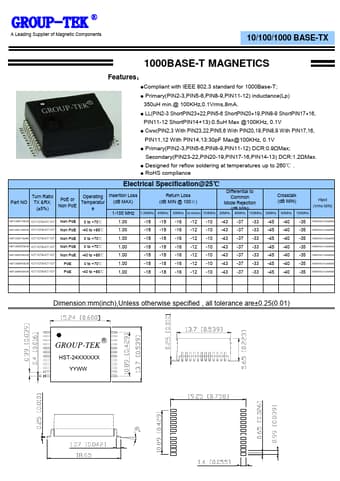

datasheet Preview Page 2

Datasheet Details

Part number
HST-24091SCR, HST-24011SCR-GROUP
Manufacturer
GROUP-TEK
File Size
130.40 KB
Datasheet
HST-24011SCR-GROUP-TEK.pdf
Description
1000 BASE-T MAGNETICS
Note
This datasheet PDF includes multiple part numbers: HST-24091SCR, HST-24011SCR-GROUP.
Please refer to the document for exact specifications by model.
