HST-24095SCR 1000 BASE-T TRANSFORMER

HST-24095SCR Features

* Designed for long haul gigabit Ethemet 1000BASE -T.full duplex applications

* Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA .

* Supports 4 pairs of category 5 UTP cable

* Cable interface for isolation and low common mode emissions

* Compliant with IEEE 802.3 standard fo

HST-24015SR-GROUP-TEK.pdf

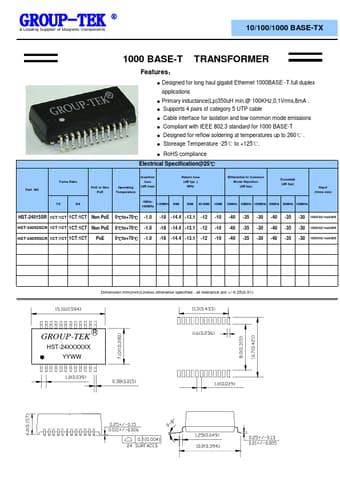

HST-24095SCR Datasheet Preview — This datasheet PDF includes multiple part numbers: HST-24095SCR, HST-24015SR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HST-24095SCR, HST-24015SR-GROUP

Manufacturer:

GROUP-TEK

File Size:

92.38 KB

Description:

1000 base-t transformer.

Note:

This datasheet PDF includes multiple part numbers: HST-24095SCR, HST-24015SR-GROUP.
Please refer to the document for exact specifications by model.
