HST-88022DR, HST-88019DR-GROUP 10/100/1000 BASE-TX VoIP MAGNETIC MODULE

GROUP-TEK

Description

® A Leading Supplier of Magnetic Components 10/100/1000 BASE-TX 10/100/1000BASE-TX VoIP MAGNETIC MODULE .

📥 Download Datasheet

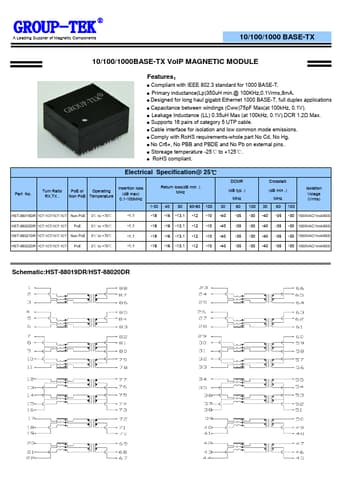

HST-88022DR Datasheet Preview — This datasheet PDF includes multiple part numbers: HST-88022DR, HST-88019DR-GROUP. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HST-88022DR, HST-88019DR-GROUP
Manufacturer: GROUP-TEK
File Size: 239.29 KB
Datasheet: HST-88019DR-GROUP-TEK.pdf
Description: 10/100/1000 BASE-TX VoIP MAGNETIC MODULE
Note: This datasheet PDF includes multiple part numbers: HST-88022DR, HST-88019DR-GROUP.
Please refer to the document for exact specifications by model.

Features

* Compliant with IEEE 802.3 standard for 1000 BASE-T.
* Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA.

Applications

* Capacitance between windings (Cww)75pF Max(at 100kHz, 0.1V).
* Leakage Inductance (LL) 0.35uH Max (at 100kHz, 0.1V). DCR 1.2Ω Max.
* Supports 16 pairs of category 5 UTP cable.
* Cable interface for isolation and low common mode emissions.
* Comply with RoHS requirements-whole pa
