GS81313LD36GK 144Mb SigmaQuad-IIIe Burst of 4 ECCRAM

Symbol Description SA D[35:0] Q[35:0] QVLD[1:0] CK, CK KD[1:0], KD[1:0] CQ[1:0], CQ[1:0] R W PLL RST ZQ ZT RCS MZT[1:0] Address * Read or Write Address is registered on CK. Write Data * Registered on KD and KD during Write operations. D[17:0] - x18 and x36. D[35:18] - x36 only.

GS81313LD36GK Features

* 4Mb x 36 and 8Mb x 18 organizations available

* 833 MHz maximum operating frequency

* 833 MT/s peak transaction rate (in millions per second)

* 120 Gb/s peak data bandwidth (in x36 devices)

* Separate I/O DDR Data Buses

* Non-multiplexed SDR Address

GS81313LD18GK-833-GSITechnology.pdf

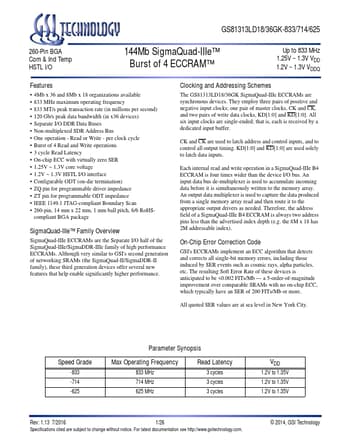

GS81313LD36GK Datasheet Preview — This datasheet PDF includes multiple part numbers: GS81313LD36GK, GS81313LD18GK-833. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GS81313LD36GK, GS81313LD18GK-833

Manufacturer:

GSI Technology

File Size:

186.34 KB

Description:

144mb sigmaquad-iiie burst of 4 eccram.

Note:

This datasheet PDF includes multiple part numbers: GS81313LD36GK, GS81313LD18GK-833.
Please refer to the document for exact specifications by model.
