GS81314LD19GK, GS81314LD19GK-933 Datasheet - GSI Technology

GS81314LD19GK - 144Mb SigmaQuad-IVe Burst of 4 Single-Bank ECCRAM

Symbol Description SA[21:1] D[35:0] Q[35:0] QVLD[1:0] CK, CK KD[1:0], KD[1:0] CQ[1:0], CQ[1:0] R W MRW PLL RST ZQ ZT RCS Address * Read or write address is registered on CK. Write Data * Registered on KD and KD during Write operations. D[17:0] - x18 and x36. D[35:18] - x36 onl.

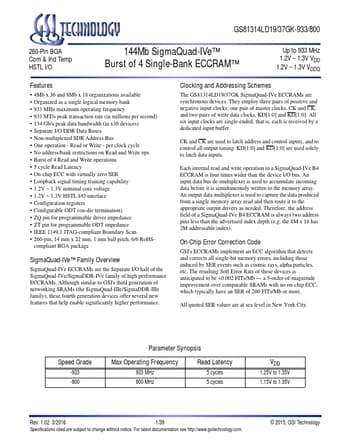

GS81314LD19GK Features

* 4Mb x 36 and 8Mb x 18 organizations available

* Organized as a single logical memory bank

* 933 MHz maximum operating frequency

* 933 MT/s peak transaction rate (in millions per second)

* 134 Gb/s peak data bandwidth (in x36 devices)

* Separate I/O D

GS81314LD19GK-933-GSITechnology.pdf

GS81314LD19GK Datasheet Preview — This datasheet PDF includes multiple part numbers: GS81314LD19GK, GS81314LD19GK-933. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GS81314LD19GK, GS81314LD19GK-933

Manufacturer:

GSI Technology

File Size:

261.79 KB

Description:

144mb sigmaquad-ive burst of 4 single-bank eccram.

Note:

This datasheet PDF includes multiple part numbers: GS81314LD19GK, GS81314LD19GK-933.
Please refer to the document for exact specifications by model.
