GS8662D07BGD

72Mb SigmaQuad-II+ Burst of 4 SRAM

GSI Technology

GS8662D07BGD Features

* 2.0 Clock Latency

* Simultaneous Read and Write SigmaQuad™ Interface

* JEDEC-standard pinout and package

* Dual Double Data Rate interface

* Byte Write controls sampled at data-in time

* Burst of 4 Read and Write

* On-Die Termination (ODT) on

GS8662D07BGD General Description

Table Symbol Description Type Comments SA Synchronous Address Inputs Input

* R Synchronous Read Input Active Low W Synchronous Write Input Active Low BW0

*BW3 Synchronous Byte Writes Input Active Low NW0

*NW1 Synchronous Nybble Writes Input Active Low (x8 onl.

GS8662D07BGD Datasheet (214.37 KB)

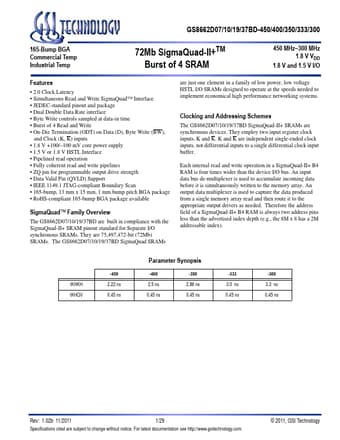

GS8662D07BGD Datasheet Preview — Preview of GS8662D07BGD PDF

Datasheet Details

Part number:

GS8662D07BGD

Manufacturer:

GSI Technology

File Size:

214.37 KB

Description:

72mb sigmaquad-ii+ burst of 4 sram.
GS8662D07/10/19/37BD-450/400/350/333/300 165-Bump BGA Commercial Temp Industrial Temp 72Mb SigmaQuad-II+TM Burst of 4 SRAM 450 MHz

*300 MHz .
