GS8662Q08E-300 72Mb SigmaQuad-II Burst

GS8662Q08E-300 Description

Preliminary GS8662Q08/09/18/36E-300/250/200/167 www.DataSheet4U.com 165-Bump BGA Commercial Temp Industrial Temp .
Table Symbol SA NC R W BW BW0. BW3 NW0. NW1 K K C C TMS TDI TCK TDO VREF ZQ Qn Dn Doff CQ CQ VDD VDDQ VSS Note: NC = Not Connected to di.

GS8662Q08E-300 Features

* Simultaneous Read and Write SigmaQuad™ Interface
* JEDEC-standard pinout and package
* Dual Double Data Rate interface
* Byte Write controls sampled at data-in time
* Burst of 2 Read and Write
* 1.8 V +100/
* 100 mV core power supply

GS8662Q08E-300 Applications

* where alternating reads and writes are needed. Therefore, the SigmaQuad-II SRAM interface and truth table are optimized for alternating reads and writes. Separate I/O SRAMs are unpopular in applications where multiple reads or multiple writes are needed because burst read or write transfers from Sep

📥 Download Datasheet

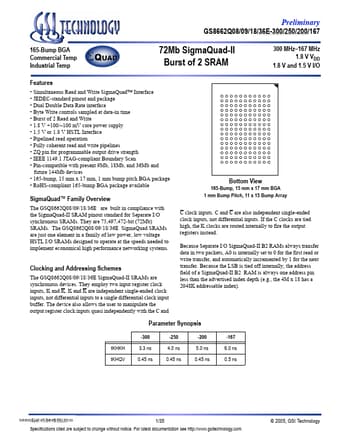

Preview of GS8662Q08E-300 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS8662Q08E-300
Manufacturer
GSI Technology
File Size
2.07 MB
Datasheet
GS8662Q08E-300_GSITechnology.pdf
Description
72Mb SigmaQuad-II Burst
