G1117A 1A Low Dropout Positive Adjustable or Fixed-Mode Regulator

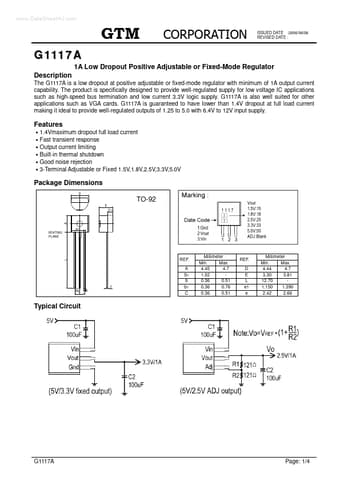

www.DataSheet4U.com ISSUED DATE :2006/06/06 REVISED DATE : G 111 7 A 1A Low Dropout Positive Adjustable or Fixed-Mode Regulator The G1117A is a low dropout at positive adjustable or fixed-mode regulator with minimum of 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. G1117A is also well suited for other applications such as VGA cards. G1117A is.

G1117A Features

* 1.4Vmaximum dropout full load current Fast transient response Output current limiting Built-in thermal shutdown Good noise rejection 3-Terminal Adjustable or Fixed 1.5V,1.8V,2.5V,3.3V,5.0V Package Dimensions D TO-92 E S1 A SEATING PLANE b1 REF. A S1 b b1 C e1 e b C Millimeter Min. Max. 4.
