G1117 Datasheet - Global Mixed-mode Technology

1A Low-Dropout Linear Regulator

G1117 Features

* Available in 1.5V, 1.8V, 2.5V, 3.3V,3.5V Version

* Space Saving SOT-223,TO-252 Packages

* Internal Short Circuit Current Limiting

* Internal Over Temperature Protection

* Output Current in Excess of 1A Applications

* Post Regulation for Switching DC/

G1117 General Description

The G1117-XX is a low dropout linear regulator with a dropout of 1.3V at 1A of load current. It is available in four fixed voltage: 1.5V, 1.8V, 2.5V, 3.3 and 3.5V versions. The G1117-XX provides over temperature and over current protection circuits to prevent it from being damaged by abnormal operat.

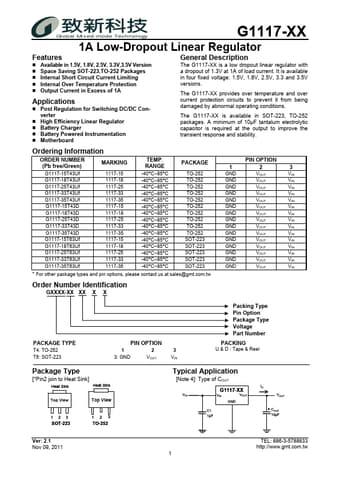

G1117 Datasheet (100.73 KB)

Preview of G1117 PDF

Datasheet Details

Part number:

G1117

Manufacturer:

Global Mixed-mode Technology

File Size:

100.73 KB

Description:

1a low-dropout linear regulator.
